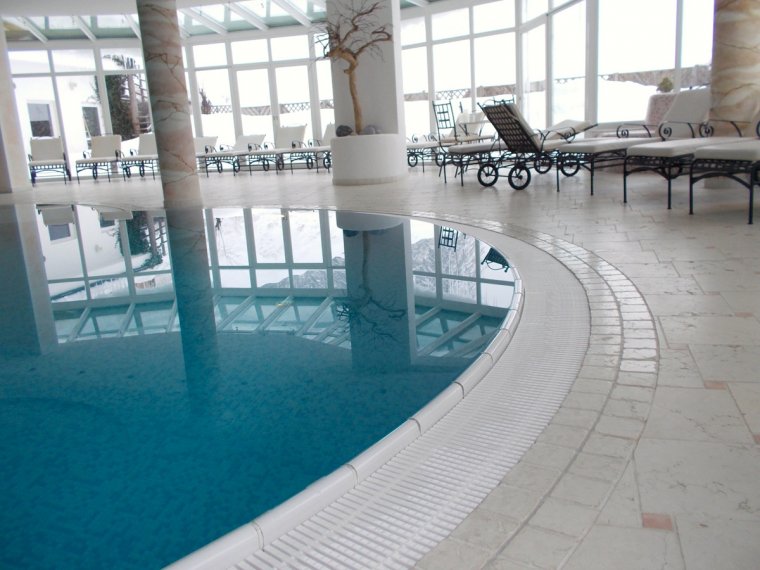

Curves

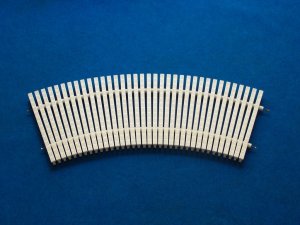

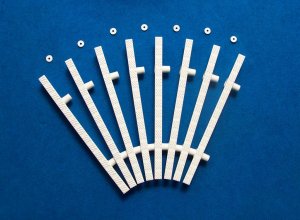

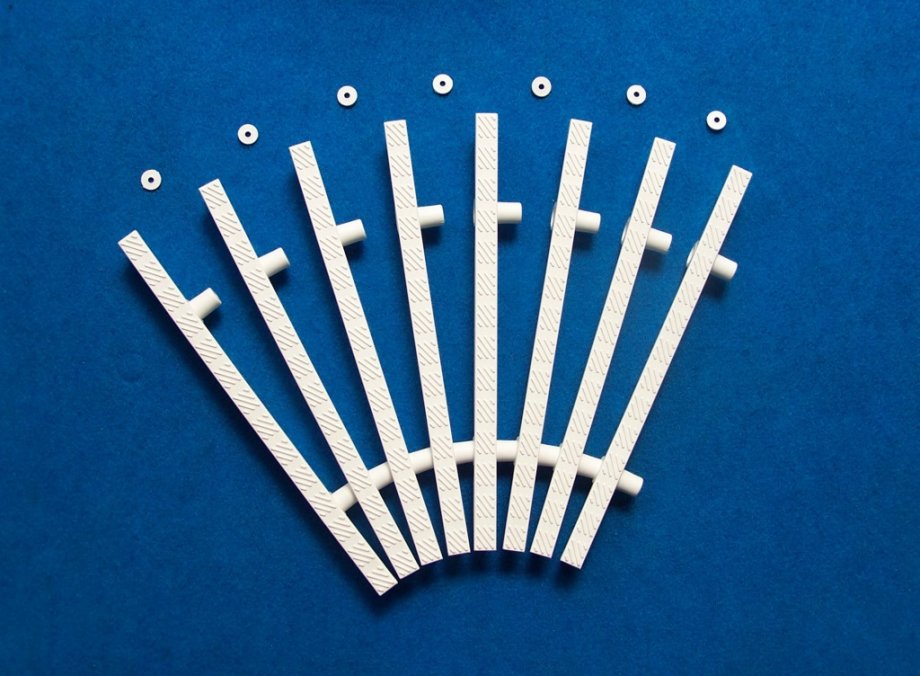

Our plastic gratings are suitable for curves of all kinds. By inserting spacers between the outer connecting pins of the slats, curves with a radius up to a maximum of 2 metres can be achieved. For tighter curves the radius can be lowered to 70 cm by cutting the inner connecting pins of the slats.
The gratings are then connected by 2 threaded rods made of stainless steel, passing through the inside of the ducts and fixed with 2 nuts at both ends. In this way we obtain curved stretches of 1 metre length which will then be inserted into the adjacent stretch so that no junction is noticed.

Technical details
Our channel gratings of 25 cm width consist of single slats compressed by a plug connection. The gratings are... more »
Design
Our antislip surface with modern and exclusiv relief is easy to clean and tested for use in wet areas with bare feet according... more »
